Quick Details

  • Structure: Deep Groove
  • Type: Ball
  • Brand Name: CLUNT or OEM
  • Bore Size: 2 - 320 mm
  • Outside Diameter: 4 - 440 mm
  • Model Number: deep groove ball bearing
  • Precision Rating: P0 P6 P5 P4 P2
  • Seals Type: Z, RS, ZZ, 2RS
  • Number of Row: Single Row
  • Place of Origin: Shandong, China (Mainland)
  • Model Number:: deep groove ball bearing
  • Material:: Chrome Steel,Gcr15,stainless stell,plastic,ceramic
  • Certification:: ISO9001:2000
  • Rate:: P0 P6 P5 P4 P2
  • Application:: Motor,mine machinery,railway,textile machine,steel,etc.
  • Main Market:: US,UK,East Asia,South Africa,Austrilia
  • Hardness: Chrome Steel HRC60-HRC65
  • Seal: Open /Z/ZZ/RS/2RS
  • Cage: Steel Cage.copper Cage.nylon Cage
  • Lubrication: Grease ,Oil

Packaging & Delivery

Packaging Details 16011Bearing package:
Original Plastic bag+paper color box+paper carton+wooden pallet
Delivery Time 3-7 days after payment, common model numbers have large stock



Product Description



Single-Row Deep Groove Ball Bearings

Pressed Steel Cages

Single-row deep groove ball bearings are the most common type of rolling bearings. Their use is very widespread.

In addition to open type bearings, these bearings often have steel shields or rubber seals installed on one or both sides and are prelubricated with grease. Also, snap rings are sometimes used on the periphery. As to cages, pressed steel ones are the most common.

For big deep groove ball bearings, machined brass cages are used.

Machined cages are also used for high speed applications.

Extra Small Ball Bearings and Miniature Ball Bearings

Miniature and instrument ball bearings can be divided into two basic types, deep groove and angular contact. The first (deep groove) can be further divided into the following five classes depending on their design details:

Standard type

Flanged outer ring

Extended inner ring

Expanded type in which one ring has a radial thickness that is larger than normal compared with the bearing width.

Thin section type in which both rings are extra thin in the radial direction. They can also be classified as: open, shielded, or sealed.

Maximum-Type Ball Bearings

Maximum-Type ball Bearings contain a larger number of balls than normal deep groove ball bearings because of filling slots in the inner and outer rings. Because of their filling slots, they are not suitable for applications with high axial loads. BL2 and BL3 types of bearings have boundary dimensions equal to those of single-row deep groove ball bearings of Series 62 and 63 respectively. Besides the open type, ZZ type shielded bearings are also available. When using these bearings, it is important for the filling slot in the outer ring to be outside of the loaded zone as much as possible. Their cages are pressed steel.

Magneto Bearings

The inner groove of magneto bearings is a little shallower than that of deep groove bearings. Since the outer ring has a shoulder on only one side, the outer ring may be removed. This is often advantageous for mounting. In general, two such bearings are used in duplex pairs. Magneto bearings are small bearings with a bore diameter of 4 to 20 mm and are mainly used for small magnetos, gyroscopes, instruments, etc. Pressed brass cages are generally used.



Bearing
NO.
Old NO.IDODBCrCorMax Speed
(Grease)
Max Speed
(Oil)
Mass
  (mm)(mm)(mm)(kN)(kN)(r/min)(r/min)(kg)
60618001661761.950.7443000510000.0058
6071771962.61.0540000470000.0076
6081882273.31.3534000410000.012
6091992473.351.433000400000.015
6262661962.61.0535000430000.0081
6272772273.31.3531000370000.013
6282882483.351.428000350000.016
6292992684.55227000330000.02
6000100102684.581.9822000300000.019
6001101122885.12.3820000260000.022
6002102153295.582.8519000240000.03
600310317351063.2517000210000.04
60041042042129.385.0216000190000.069
600510525471210.15.8515000180000.08
600610630551313.28.2513000150000.116
600710735621415.910.311000130000.155
60081084068151711.89000110000.185
60091094575162114.88000100000.23
60101105080162216.2700090000.25
6200200103095.12.3820000260000.032
62012011232106.823.0519000240000.037
62022021535117.653.7218000220000.045
62032031740129.584.7816000200000.065
620420420471412.86.6514000180000.106
6205205255215147.8513000150000.128
620620630621619.511.311000130000.199
620720735721725.715.49200110000.288
620820840801829.5188000100000.368
620920945851931.520.5700090000.416
62102105090203523.2670085000.463
63003001035117.653.4818000240000.053
63013011237129.725.0817000220000.06
630230215421311.55.4216000200000.082
630330317471413.56.5815000180000.115
630430420521515.87.8813000160000.142
630530525621720.611.311000130000.232
630630630721926.7156600120000.346
630730735802133.419.38500100000.457
630830840902340.824700085000.639
6309309451002552.831.8630075000.837
6310310501102761.838600070001.082
640340317621722.710.811000150000.27
64044042072193115.29500130000.4
640540525802136.119.49100110000.53
640640630902343.423.9810097000.735
640740735100255531720086000.952
6408408401102765.537.5630080001.221
6409409451202977.545.5560070001.52
6410410501303192255.2530063001.855
160017000101122875.12.420000260000.024
160027000102153285.62.819000240000.025
1600370001031735863.318000220000.032
160047000104204287.94.516000190000.05
160057000105254788.855.615000180000.06
1600670001063055911.27.3513000150000.085
1600770001073562912.28.8511000130000.11
1600870001084068912.69.69000110000.125
16009700010945751015.612.28000100000.155
16010700011050801016.113.1800095000.166

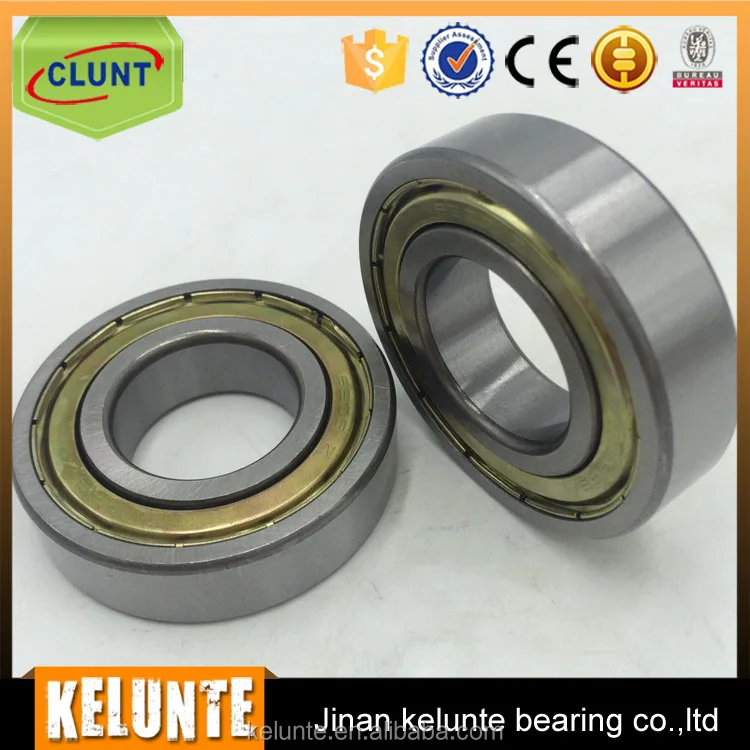

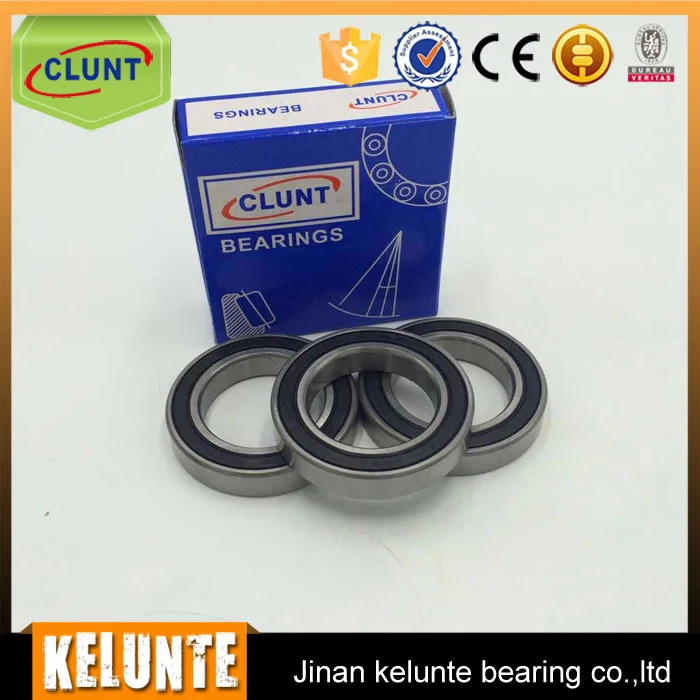

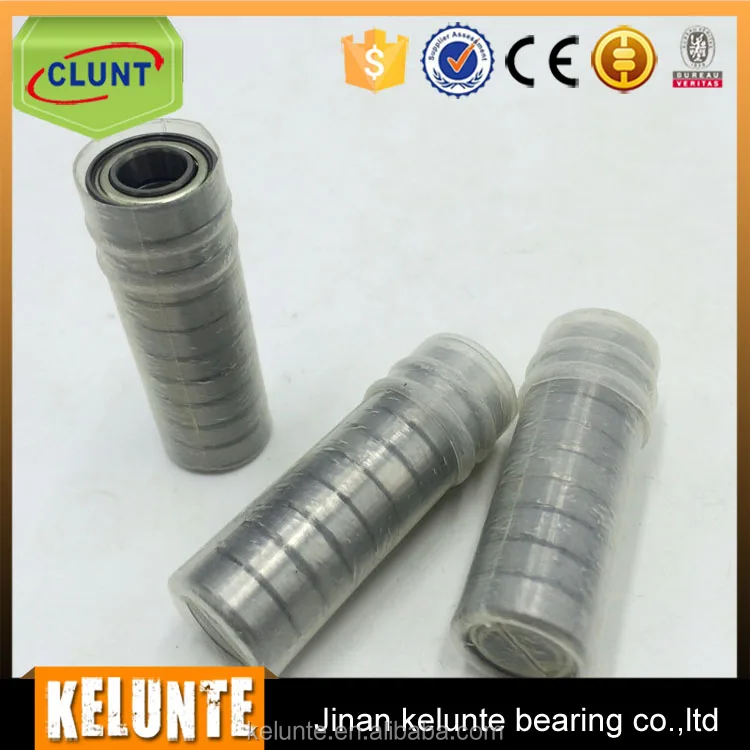

Product Pictures



Company Information

Jinan Kelunte Bearing Co., Ltd. is a professional deep groove ball bearing manufacturer and is engaged in the imported bearings.Our company is engaged in the imported bearings,company's main imported Roller Bearing,Ball Bearing,deep groove ball bearings,taper roller bearings,angular contact ball bearings,Pillow Block Bearing etc.



main bearing products

 Deep groove ball bearing: 6000series, 6100series, 6200series, 6300series, 6400 series, 6800 series,6900 series, etc.

 Angular contact ball bearing: 7100series, 7200series, 7300series, 7400series, etc.

 Taper roller bearing: 30000series, 31000series, 32000series, 33000 series.

 Spherical roller bearing: 20000series, 21000series, 22000series, 23000series.

 Cylindrical roller bearing: N series, NU series, NJ series, etc.

 Pillow block bearing: UC series, UCP series, UCF series, UCFL series.

 Self aligning ball bearing: 1200series, 1300series, 2200series, 2300series.

 Needle Roller Bearing

 Sliding bearing

 Slewing Bearing

 Rod End Joint Bearing

 Ceramic Bearing

 Bearing Accessories
